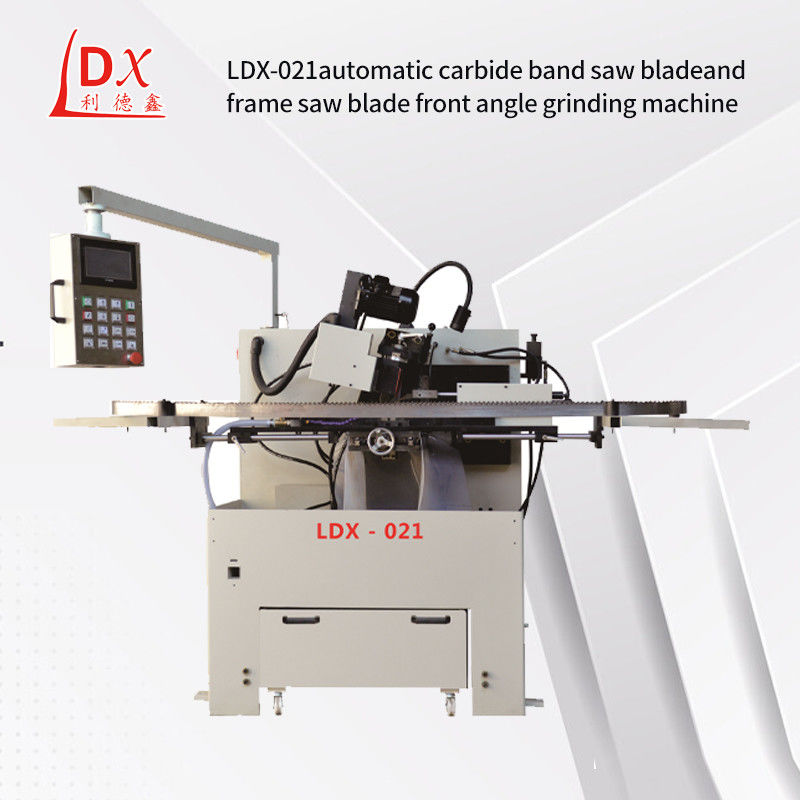

LDX-021 Lidexin Woodworking Carbide Saw Blade Sharpener Machine
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-021 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Mechanical dimensions (L X W X H mm) : 800X800X1380 |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Mechanical Weight: | 300KG | Working Speed: | Maximum 18 Teeth/min |
|---|---|---|---|
| Saw Blade Width: | 27-100mm | Grinding Wheel Size (outer Diameter X Hole): | ￠125mmX32mm |
| Highlight: | ldx-021 saw blade grinding machine,ldx-021 saw blade sharpener machine,woodworking saw blade grinding machine |
||
Product Description
LDX-021 Lidexin woodworking carbide saw blade sharpener machine
Features of gear grinding machine:
1,Sawtooth grinding machine, also known as saw blade grinding machine, is a representative product of the grinding machine, which can grind the saw blade, with high processing accuracy and high work efficiency.
2,Gear grinding machine is usually composed of cooling device, fixture, circuit control system, host, adjusting mechanism, grinding gear frame, grinding disc and grinding gear and other components.
3,Gear grinding machine can be used to process automotive transmission, engine and gear box parts; In the field of metallurgy, gear grinding machine can be used for metal material grinding processing; In the field of molds, gear grinding machines can be used to process gear molds.
| Technical parameter: |
| Processing saw blade thickness: 0.6-3mm |
| Saw blade width: 27-100mm |
| Working speed: Maximum 18 teeth/min |
| Grinding wheel size (outer diameter X hole) : ￠125mmX32mm |
| Grinding wheel line speed: 26m/s |
| Coolant pump flow rate: 501 |
| Coolant cylinder volume: 80L |
| Total power: 2KW |
| Voltage: three-phase 380V |
| Mechanical weight: 300KG |
| Mechanical dimensions (L X W X H mm) : 800X800X1380 |
| Grinding object: |
| Alloy band saw blade, bimetal band saw blade, frame saw blade, width 27mm-150mm can be used. Can grind all kinds of tooth shape, such as 3-4 teeth, 4/6 teeth, variable teeth and equal teeth, etc. The machine is simple and convenient to operate, suitable for large, medium and small machinery factory, wood processing, steel sawing processing plant, alloy band saw blade, bimetal band saw blade, frame saw blade tooth shape grinding indispensable equipment. |
