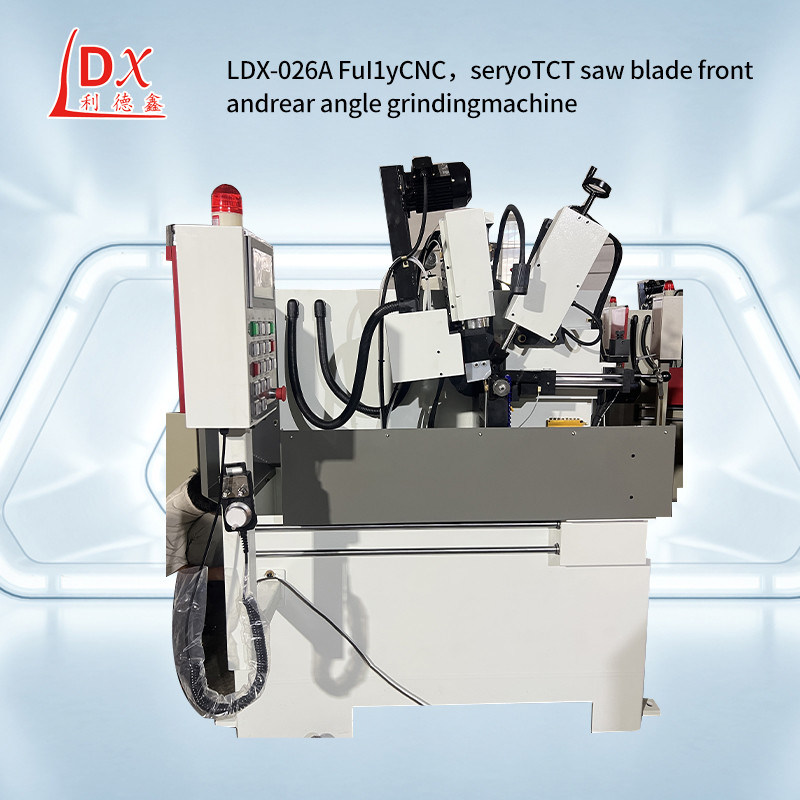

LDX-026A Servo Feed NC TCT Circular Saw Blade Front And Rear Angle Grinding Machine
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-026A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Appearance(Long*Width*Height):1500X1300X1800mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Inner Bore Of Saw Blade: | ￠10-220mm | Pitch Range: | 7-100mm |
|---|---|---|---|
| Main Technical Parameters : Range Of External Diameter Of Processing: | ￠100-￠800mm | Working Speed: | Maximum 20 Teeth/minute |
| Highlight: | ldx-026a grinding machine manufacturer,ldx-026a carbide saw blade sharpening machine,tct grinding machine manufacturer |
||
Product Description

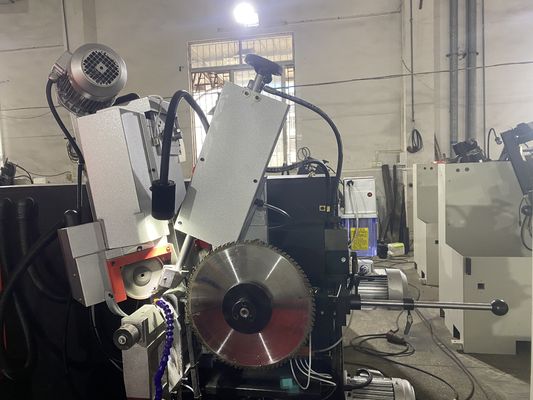

LDX-026A Servo feed NC TCT circular saw blade front and rear Angle grinding machine
CNC grinding tooth learning how long:
1,understand the principle of CNC gear grinding, process flow, common equipment and tools.
2,Master the operation methods and related technical requirements of CNC gear grinding special machine tools.
3,Different people may have different learning speeds and understanding abilities. Some people may be able to master the numerical control gear grinding technology in a few months, while others may need longer time. Continuous learning and practice is the key to improving your skills.
| Main Technical Parameters : |
| Range of external diameter of processing:￠100-￠800mm |
| Inner bore of saw blade:￠10-220mm |
| Thickness of saw web (steel plate):1-8mm |
| Pitch range:7-100mm |
| Tooth face angle:5°~+30° |
| Tooth top dorsal angle:6-45° |
| Tooth left/right gradient: Tooth top/tooth face 45° |
| Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min |
| Grinding speed:0.5-6mm/s |
| Working speed: Max. 20 teeth/min |
| Grinding wheel dimensions (outer diameter * bore): (￠125mm*￠32mmX1mm) |
| Negative chamfer grinding: -27° |
| Grinding head rotation angle: 90° and 180° |
| Grinding speed: 26m/s |
| Coolant pump flux:501/min |
| Coolant cylinder volume: 85L |
| Total power: 2.2KW |
| Voltage:three-phase 380v |
| Total weight of equipment:900KG |
| Appearance(Long*Width*Height):1500X1300X1800mm |
| Technical features: |
| This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time. |
| 1. Preset many groups of tooth types and one-key multifunctional operation. |
| 2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged. |
