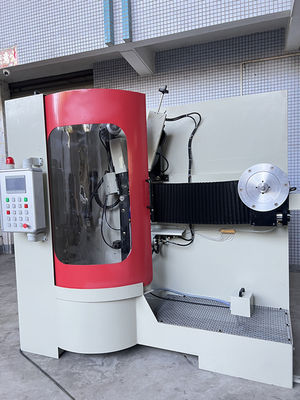

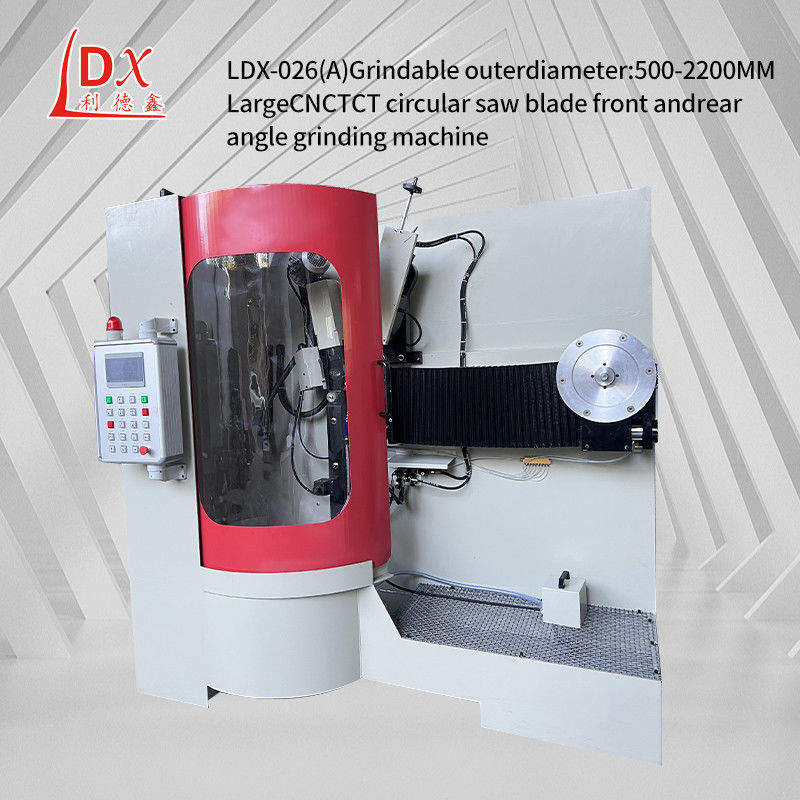

LDX-026A 500-1800MM Diameter Full CNC Servo Feed Circular Saw Blade Gear Grinding Machine

Product Description

LDX-026A Manufacturers customize large circular saw blade automatic grinding machine

How to use multi-blade saw gear grinding machine:

1,First of all, the grinding wheel lift is adjusted to the lowest, the saw blade is installed on the saw blade seat, a good pressure plate, turn the handwheel, the saw blade is driven by the lead screw to move up and down the saw blade is adjusted to more than 30~50 mm of the pressure head, and the pressure head is compressed.

2,Adjust the serrated position at the end of the gear shift and align the grinding wheel with the serrated saw blade. Then adjust the grinding wheel to the grinding * position to start grinding.

3,Grinding wheel Angle adjustment: to adapt to grinding saw blades with different serrated front angles. The Angle of the wheel mounting plate can be adjusted. The method is to loosen the two bolts of the mounting seat plate of the grinding wheel holder (do not remove the nuts) and then rotate the grinding wheel holder in a clockwise direction. Turn so that the front end of the grinding wheel, when the saw blade feed grinding, can contact the entire plane of the front corner of the tooth (from the tip of the tooth to the root of the tooth).

Circular saw blade common problems and solutions:

1,First check whether the equipment is placed high or uneven, check the bad bearing of the equipment, the machine shell should be kept intact, the grinding wheel of the equipment is not eccentric and other problems, and finally check whether the gear is intact and whether the bearing seat is worn; If there is still no way to solve the problem, immediately contact the manufacturer for processing.

2,Most of this situation is the line problem, should immediately cut off the power supply, check the line, test whether the voltage is stable, whether the power supply is normal, whether the ground line is linked, there is no influence on the voltage equipment nearby, there is also a situation, that is, the equipment itself, see whether the saw blade items stuck, or other parts should also be checked; If there is a problem with the equipment itself, this needs to be checked by a professional.

3,Most of the possibilities are bearings, such as eccentric grinding wheel, damage, gear damage, etc. Such hardware damage should be contacted by the supplier for repair or replacement.
