LDX-020A 200MM-1000MM Diameter TCT Circular Saw Blade Front And Rear Angle Gear Grinding Machine

Product Description

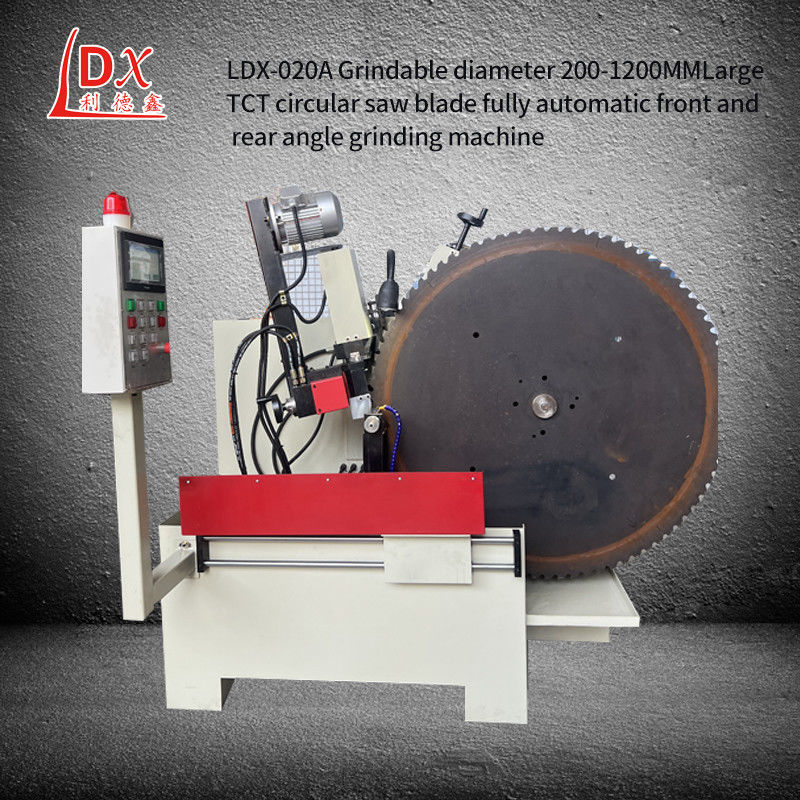

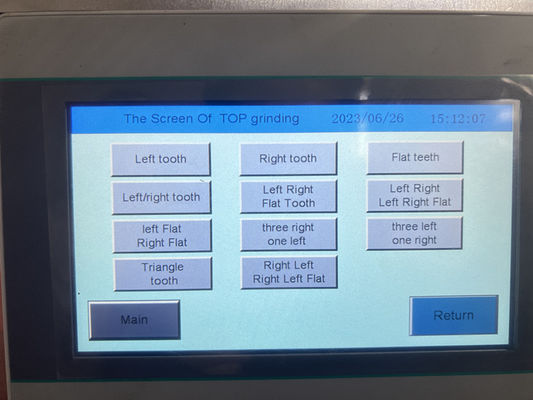

LDX-020A 200MM-1000MM Diameter TCT Circular Saw Blade Front And Rear Angle Gear Grinding Machine

What are the preparations before grinding the gear grinding machine:

1,Measure the outer diameter and center hole of the saw blade and select the centering washer, install the saw blade on the saw blade seat, and then lock it with the rolling nut of the saw blade seat, then relax the fixed locking screw of the saw blade seat, and then move the saw blade seat to align the size of the outer diameter of the saw blade with the corresponding scale of the saw blade seat, and then lock the fixed screw.

2,If the saw blade has broken teeth or a new tooth, it must be used. In general, it is easier to grind with guide pieces, and guide pieces should be used as much as possible.

3,If the rotation of the saw blade is not properly relaxed, the forward displacement of the saw blade will not be allowed at this time, so when the saw blade is installed, rotate the circular saw blade with the left hand counterclockwise direction to test the rotation tightness, if the tightness is improper, adjust the anti-loosening nut with the M17 open wrench to make the rotation tightness of the saw blade appropriate.

What is the programming method of CNC gear grinding machine:

1,First, it is necessary to determine the workpiece coordinate system, usually using rectangular coordinate system or polar coordinate system to describe the workpiece position and movement trajectory.

2,According to the requirements of the parts and the characteristics of the grinding process, select the appropriate tool and grinding parameters, including grinding speed, feed speed, grinding depth, etc.

3,Use special CNC programming software or directly on the control panel of the CNC gear grinding machine to write program code. The program code includes the instructions and parameter Settings of each grinding operation, and the commonly used CNC programming languages are G code and M code.

4,Start and end points are set in the program according to the geometry and size of the workpiece. The starting point is the position where the tool starts grinding, and the end point is the position where the tool finishes grinding.

5,The path instruction is written in the program to describe the moving path of the tool. Path instructions can be linear interpolation instructions, arc interpolation instructions and so on. Efficient grinding operations can be achieved through proper path planning.

6,According to machining requirements and machine accuracy, set compensation and correction parameters, such as tool radius compensation, compensation preset value, etc. These Settings help to improve part size accuracy and surface quality.

7,Before the actual operation, the written program is simulated and verified by numerical control simulation software to check whether the program is correct and to detect possible problems in advance.

8,The written program is uploaded to the control system of CNC gear grinding machine through the appropriate interface to ensure the correctness and integrity of the program file.

9,Start the CNC gear grinding machine and carry out the machining operation according to the execution sequence of the program. At the same time, the state of the tool and the workpiece is monitored in time to ensure the stability and safety of the processing process.

10,After finishing the processing, the processing results are checked and evaluated. Fine-tune and adjust, if necessary, to meet the machining requirements of the part.
