LDX-028A Large CNC Alloy Saw Blade Double Grinding Head Side Angle Gear Grinding Machine
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-028A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Outer diameter dimensions: 1.75*1.4*1.9m |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Saw Web Machining Diameter Range: | ￠300-￠1500mm | Saw Web Bore Diameter: | 12-220mm |
|---|---|---|---|
| Tooth Pitch: | 5-110mm | Radial Angle: | 3°-15° |
| Coolant Cylinder Volume: | 90L | Outer Diameter Dimensions: | 1.75*1.4*1.9m |
| Highlight: | Side Angle Gear Grinding Machine,Large CNC Gear Grinding Machine |
||
Product Description

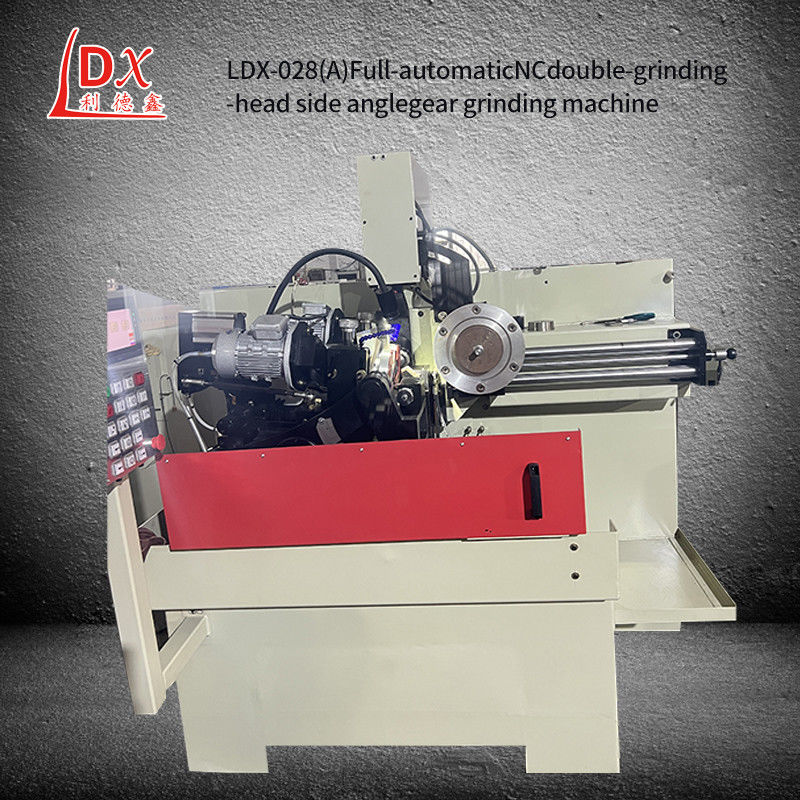

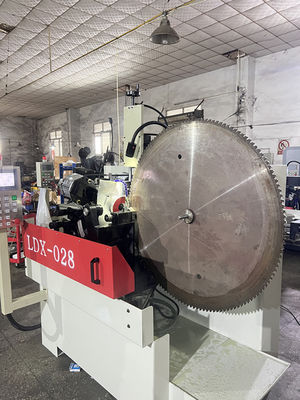

LDX-028A Large CNC Alloy Saw Blade Double Grinding Head Side Angle Gear Grinding Machine
How to deal with when the gear grinding machine stops working:
1,In the future, we should pay attention to a series of operations on the equipment, so we need to understand the relevant precautions, here to tell you what should be paid attention to after suspending the use of the gear grinding machine.
2,After the end of use, the grinding machine should be cleaned to ensure the normal use of the next time; In addition, check the liquid level of the lubricating oil in the equipment.
3,When lubrication is required, it is manually filled, and try to ensure that the machinery has been adhering to a better lubrication state. In order to prevent rust on parts of the machinery, it should be noted that sunscreen should be applied.
Depth adjustment method of automatic gear grinding machine for band saw blade:
1,Before adding or reducing the block adjustment, it is necessary to ensure that the band saw blade automatic gear grinding machine has cut a section of the saw blade, so that the depth adjustment can be made.
2,Place the addition and subtraction block on the grinding bench and contact the saw blade after adjusting the Angle.
3,urn on the motor and gradually adjust the addition and subtraction block downward to achieve the required grinding depth, while ensuring good contact between the saw blade and the addition and subtraction block.
4,After the adjustment is completed, turn off the motor, remove the addition and subtraction block, and check the grinding depth again.
| Technical parameters: |
| Saw web machining diameter range:￠300-￠1500mm |
| Saw web bore diameter: 12-220mm |
| Thickness of saw web (steel plate):1-15mm |
| Tooth pitch: 5-110mm |
| Front inclination angle, inclination angle: 5°-15° |
| Radial angle: 3°-15° |
| Operating speed: 18 teeth/min |
| Feeding stroke: 1-28mm (stepless variable speed) |
| Grinding wheel dimensions: 80*150*32mm |
| Grinding speed: 26m/s |
| Coolant pump flux: 501/min |
| Coolant cylinder volume: 90L |
| Total power: 4.3KW |
| Voltage: Three-phase 380v |
| Weight: 1,100KG |
| Outer diameter dimensions: 1.75*1.4*1.9m |
| Technical characteristics: |
| An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced. |
