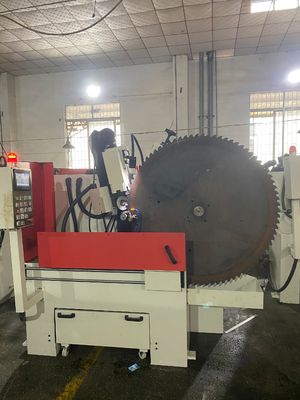

LDX-026A Grindable Diameter 200-1300MM Servo Feed Fully CNC Circular Saw Blade Gear Grinding Machine
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-026A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Appearance(Long*Width*Height):1600X1300X1900mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Range Of External Diameter Of Processing: | ￠300-￠1400mm | Inner Bore Of Saw Blade: | ￠10-220mm |
|---|---|---|---|
| Tooth Top Dorsal Angle: | 6-45° | Tooth Face Angle: | 5°~+30° |
| Grinding Head Rotation Angle: | Grinding Head Rotation Angle: 90° And 180° | Appearance(Long*Width*Height): | 1600X1300X1900mm |
| Highlight: | Fully CNC Gear Grinding Machine,Saw Blade Gear Grinding Machine |
||
Product Description

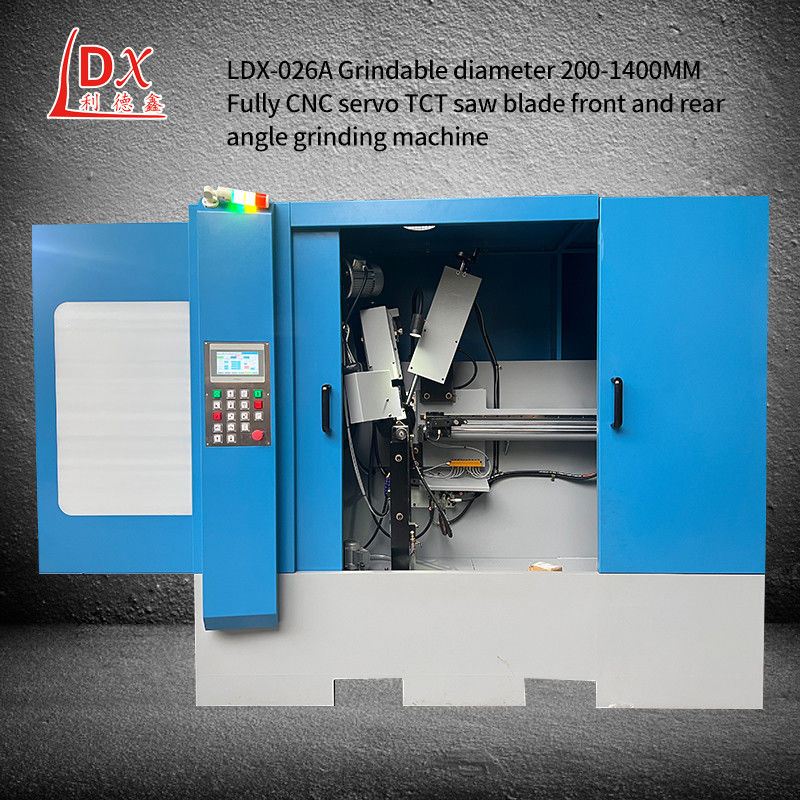

LDX-026A Grindable Diameter 200-1300MM Servo Feed Fully CNC Circular Saw Blade Gear Grinding Machine
Gear grinding machine technical parameters:
1,Power: Select the right power according to the actual production needs to ensure grinding efficiency and stability.
2,Tooth shape: Select the corresponding grinding machine according to the tooth shape requirements of the circular saw blade to ensure that the grinding quality meets the requirements.
3,Precision: Select equipment with high-precision drive systems and grinding technology to ensure grinding accuracy and stability.
4,Surface roughness: The appropriate surface roughness helps to improve the cutting quality and efficiency of the circular saw blade, and should be selected according to actual needs.
CNC circular saw blade grinding machine is suitable for which saw blade grinding:
1,CNC circular saw blade grinding machine has a wide range of applicability, can meet the different types and specifications of the saw blade grinding needs.
2,Different saw blade materials and specifications may need to adapt to different grinding parameters and tools, so when using CNC circular saw blade grinding machine, it is necessary to adjust and set according to the actual situation of the saw blade.
3,At the same time, regular maintenance and maintenance of equipment, as well as compliance with operational norms and safety requirements, are also important measures to ensure the normal operation of equipment and safe operation.
| Main Technical Parameters : |
| Range of external diameter of processing:￠200-￠1400mm |
| Inner bore of saw blade:￠10-220mm |
| Thickness of saw web (steel plate):1-12mm |
| Pitch range:7-100mm |
| Tooth face angle:5°~+30° |
| Tooth top dorsal angle:6-45° |
| Tooth left/right gradient: Tooth top/tooth face 45° |
| Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min |
| Grinding speed:0.5-6mm/s |
| Working speed: Max. 20 teeth/min |
| Grinding wheel dimensions (outer diameter * bore): (￠125mm*￠32mmX2mm) |
| Negative chamfer grinding: -27° |
| Grinding head rotation angle: 90° and 180°Grinding speed: 26m/s |
| Coolant pump flux:501/min |
| Coolant cylinder volume: 85L |
| Total power: 2.2KW |
| Voltage:three-phase 380v |
| Total weight of equipment:1000KG |
| Appearance(Long*Width*Height):1600X1300X1900mm |
| Technical features: |
| This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time. |
| 1. Preset many groups of tooth types and one-key multifunctional operation. |
| 2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged. |
