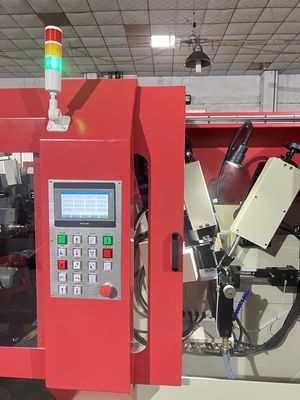

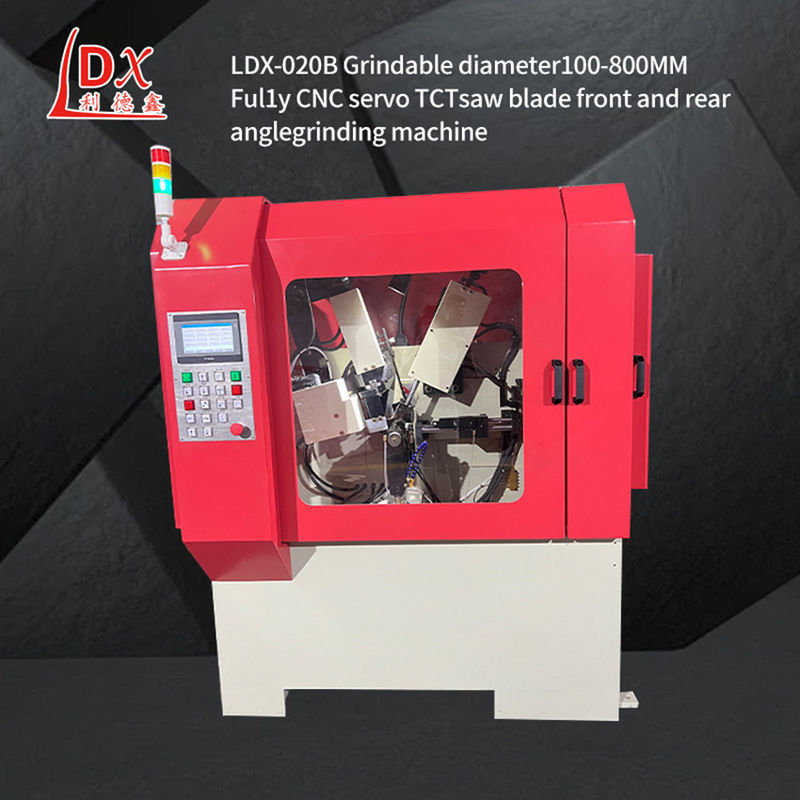

LDX-020B Fully CNC Circular Saw Blade Gear Grinding Machine Manufacturer Wholesale
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-020（B） |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Mechanical size (length X width X height): 1500X1300X1800mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Saw Blade Aperture: | ￠ 10-220mm | Saw Blade Thickness (steel Plate): | 1-8mm |
|---|---|---|---|
| Pitch: | 7-100mm | Left And Right Inclination Of The Tooth: | Tooth Top / Tooth Surface 45 Degrees |
| Processing Saw Blade Diameter Range: | ¢100-800mm | Tooth Surface Angle: | 5 Degrees ~ +30 Degrees |
| Highlight: | Circular Saw Blade Gear Grinding Machine,CNC Saw Blade Gear Grinding Machine |
||
Product Description
LDX-020B Fully CNC Circular Saw Blade Gear Grinding Machine Manufacturer Wholesale
Saw blade grinding machine can not change the original Angle:
1,If the saw blade of the alloy head saw blade production line is not used immediately, it should be placed flat or suspended by using the inner hole, and other items or feet can not be stacked on the flat saw blade, and pay attention to moisture and rust prevention.
2,When the saw blade is no longer sharp and the cutting surface is rough, it must be re-polished in time. Grinding can not change the original Angle, and destroy the dynamic balance.
3,Saw blade inner diameter correction, positioning hole processing, etc., must be carried out by the manufacturer. If the processing is poor, it will affect the use of the product, and may be dangerous, reaming in principle can not exceed the original aperture 20mm, so as not to affect the balance of stress.
The main features of CNC circular saw gear grinding machine include:
1,High efficiency: Through CNC technology, the machine can automatically complete the grinding process of the saw blade teeth, which greatly improves the work efficiency. At the same time, precision grinding also ensures that the saw blade maintains stable performance during use.
2,Precision: CNC technology enables the machine to achieve high-precision grinding, ensuring that the shape and size of the saw blade teeth meet the requirements. This helps to improve the cutting accuracy and efficiency of the saw blade.
3,Automation: CNC circular saw grinding machines are usually equipped with automatic devices, which can realize automatic feeding, grinding and unloading functions, reduce the complexity of manual operation and reduce labor intensity.
4,Flexibility: CNC technology enables the machine to adapt to different specifications and types of circular saw blade grinding needs, improving the versatility and flexibility of the equipment.
| Technical Parameters: |
| Processing saw blade diameter range: ¢100-800mm |
| Saw blade aperture: ¢10-220mm |
| Saw blade thickness (steel plate): 1-7mm |
| Pitch: 7-100mm |
| Tooth surface angle: 5 degrees ~ +30 degrees |
| Tip back angle: 6-45 degrees |
| Left and right inclination of the tooth: tooth top / tooth surface 45 degrees |
| Sharpening stroke range: up to 25mm (adjustable) teeth / minute |
| Sharpening speed: 0.5-6mm/s |
| Working speed: maximum 20 teeth / minute |
| Grinding wheel size (outer diameter x hole): (¢125mmx¢32mmX1mm) |
| Negative chamfer grinding: -27 degrees |
| Grinding head can rotate angle: 90 degrees and 180 degrees |
| Grinding wheel line speed: 26m / s |
| Coolant pump flow: 501/min |
| Cooling tank volume: 85L |
| Total power: 1.85 kW |
| Voltage: three-phase 380v |
| Mechanical weight: 710KG |
| Mechanical size (length X width X height): 1500X1300X1800mm |
| Technical features: |
| This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time. |
| 1. Preset many groups of tooth types and one-key multifunctional operation. |
| 2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged. |
