LDX-020B Large CNC Circular Saw Blade Front And Rear Angle Grinding Machine
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-020（B） |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Appearance(Long*Width*Height):1500X1200X1800mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Tooth Face Angle: | 5°~+30° | Range Of External Diameter Of Processing: | ￠200-￠1200mm |
|---|---|---|---|
| Negative Chamfer Grinding: | -27° | Thickness Of Saw Web (steel Plate): | 1-12mm |
| Coolant Cylinder Volume: | 85L | Appearance(Long*Width*Height): | 1500X1200X1800mm |
| Highlight: | Large CNC Grinding Machine,Front And Rear CNC Grinding Machine,Rear Angle CNC Grinding Machine |
||
Product Description

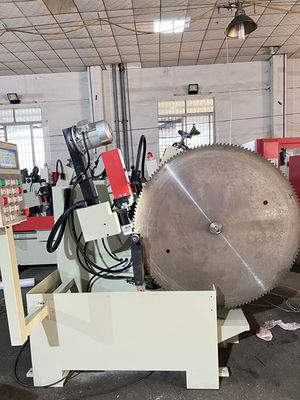

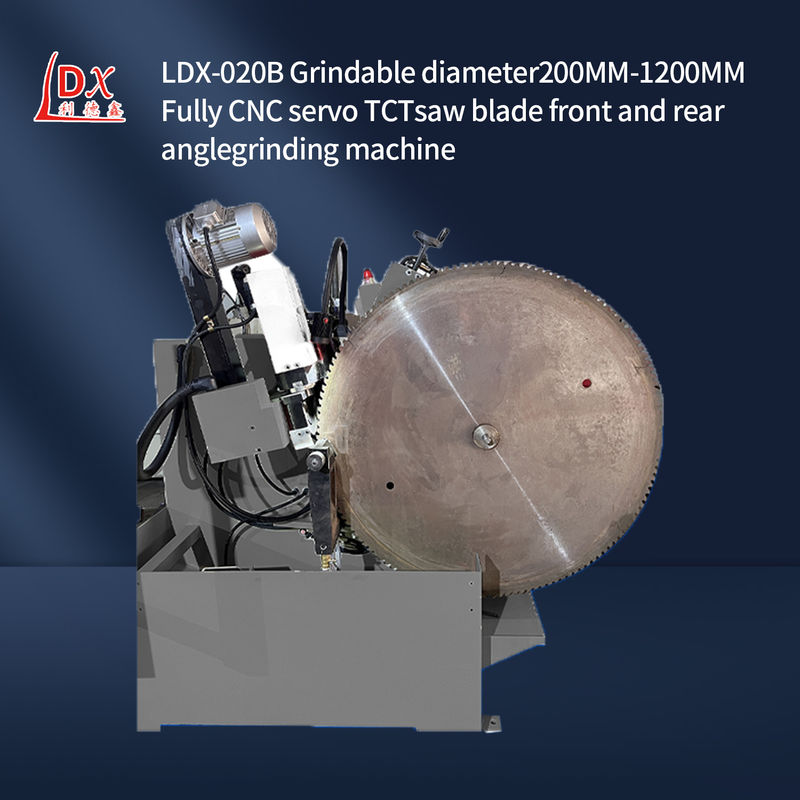

LDX-020B Large CNC circular saw blade front and rear Angle grinding machine
Circular saw blade grinding machine grinding skills:
1,Leave chip discharge space : During the grinding process, be careful to leave enough chip discharge space to avoid overheating or deformation of the saw blade.
2,Use a guide blade : if the saw blade has broken teeth or a new tooth needs to be made, the guide blade should be used for grinding, which can make it easier to grind the saw blade.
3,Adjust saw blade rotation tightness : Ensure that the saw blade rotation tightness is appropriate to eliminate rotation inertia and grinding wheel impact.
4,Adjust the thickness of the saw blade : make the center of the grinding wheel and the thickness center of the saw blade line up to ensure the uniformity of grinding.
5,Select the appropriate cutting Angle : Select the appropriate cutting Angle according to the material to be cut, and adjust the saw blade base to the required cutting Angle.
6,Low and low tooth difference adjustment : If the high and low teeth need to be polished, adjust the high and low tooth difference adjustment lever to the desired scale.
| Main Technical Parameters : |
| Range of external diameter of processing:￠200-￠1200mm |
| Inner bore of saw blade:￠10-220mm |
| Thickness of saw web (steel plate):1-12mm |
| Pitch range:7-100mm |
| Tooth face angle:5°~+30° |
| Tooth top dorsal angle:6-45° |
| Tooth left/right gradient: Tooth top/tooth face 45° |
| Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min |
| Grinding speed:0.5-6mm/s |
| Working speed: Max. 20 teeth/min |
| Grinding wheel dimensions (outer diameter * bore): (￠125mm*￠32mm*1mm) |
| Negative chamfer grinding: -27° |
| Grinding head rotation angle: 90° and 180°Grinding speed: 26m/s |
| Coolant pump flux:501/min |
| Coolant cylinder volume: 85L |
| Total power: 2.2KW |
| Voltage:three-phase 380v |
| Total weight of equipment:800KG |
| Appearance(Long*Width*Height):1500X1200X1800mm |
| Technical features: |
| This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time. |
| 1. Preset many groups of tooth types and one-key multifunctional operation. |
| 2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged. |
