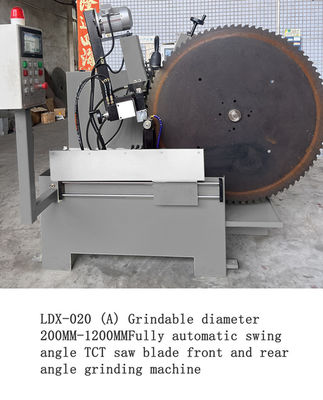

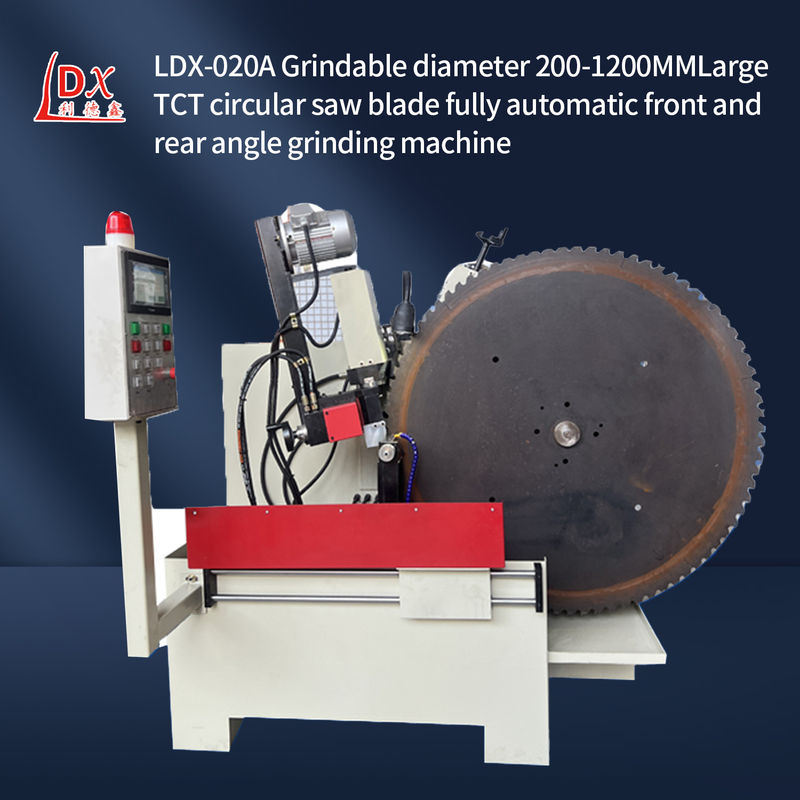

LDX-020A Factory Direct Automatic Saw Blade Front And Rear Angle Sharpening Machine

Product Description

LDX-020A Factory direct automatic saw blade front and rear Angle sharpening machine

Specific installation requirements of circular saw blades:

1,The equipment is in good condition, the main shaft has no deformation, no diameter jump, the installation is fixed firmly, no vibration and so on.

2,Check whether the saw blade is damaged, whether the tooth profile is complete, whether the saw plate is smooth and smooth, and whether there are other abnormal phenomena to ensure the safety of use.

3,When assembling, make sure that the direction of the saw blade arrow is consistent with the rotation direction of the equipment spindle.

4,When the saw blade is installed, it is necessary to keep the shaft, chuck and flange clean, the inner diameter of the flange is consistent with the inner diameter of the saw blade, ensure that the flange is tightly combined with the saw blade, install the positioning pin, and tighten the nut. The size of the flange should be appropriate, and the outer diameter should not be less than 1/3 of the diameter of the saw blade.

5,Before starting the equipment, ensure that it is safe to have a single person operate the equipment, point idle, check whether the equipment steering is correct, there is no vibration, after the saw blade is installed, idling for a few minutes, no slippage, swing or jump after normal work.

Analysis of vibration characteristics of column of NC forming gear grinding machine:

1,In order to reduce the influence of vibration characteristics of the column on machining accuracy, the mathematical equations of vibration and displacement response of the column were established based on the theory of mechanical vibration, and the influence of different structural parameters on vibration characteristics of the column was analyzed based on the finite element software ANSYS.

2,The results show that it is an effective way to improve the vibration characteristics of the column in a certain design range of wall thickness by adding reinforcing bars in a reasonable layout.

3,The first order natural frequency of the designed column is increased by 10.9% and the larger deformation is reduced by 25.5%. Finally, the vibration test of the designed machine tool is carried out, and the column shows good vibration characteristics. The research provides a basis for reducing the influence of vibration on machining accuracy and dynamic optimization design of column.

4,Focus on the production and development of carbide saw blades, products to help customers manufacture saw blade products, to help you improve the production process of saw blades.
