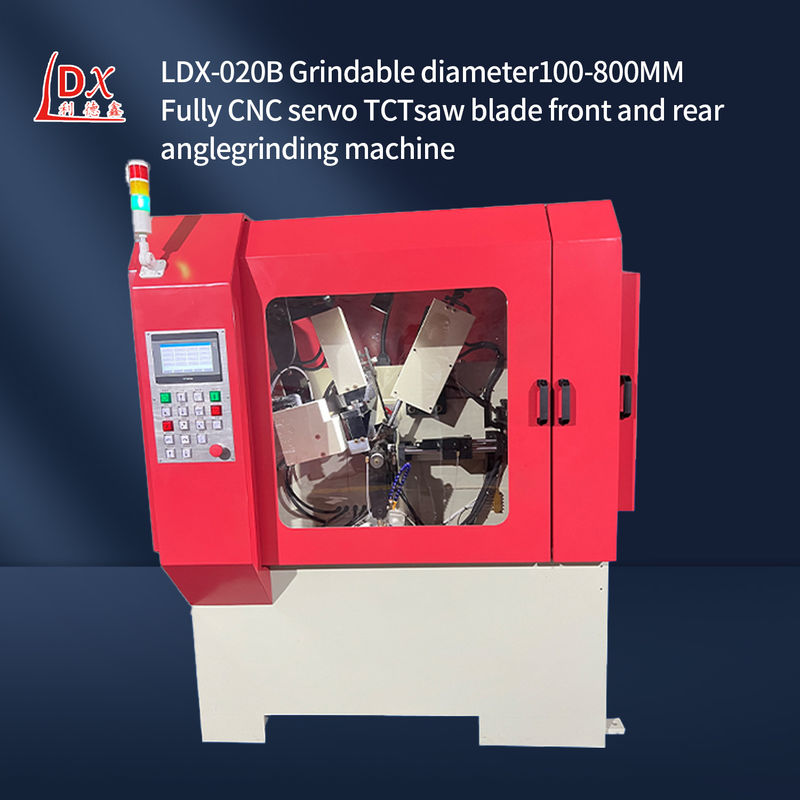

LDX-020B Servo Feed Full CNC Saw Blade Front And Rear Angle Grinding Machine
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-020（B） |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Mechanical size (length X width X height): 1500X1300X1800mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Saw Blade Aperture: | ￠ 10-220mm | Saw Blade Thickness (steel Plate): | 1-8mm |
|---|---|---|---|
| Pitch: | 7-100mm | Left And Right Inclination Of The Tooth: | Tooth Top / Tooth Surface 45 Degrees |
| Processing Saw Blade Diameter Range: | ¢100-800mm | Tooth Surface Angle: | 5 Degrees ~ +30 Degrees |
| Highlight: | Rear Angle Grinding Machine,CNC Saw Blade Grinding Machine |
||
Product Description

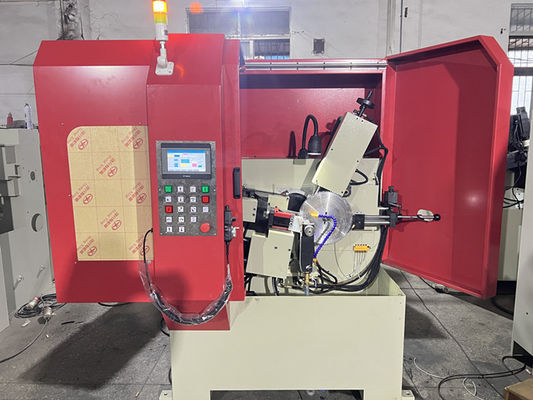

LDX-020B Servo feed full CNC saw blade front and rear Angle grinding machine
Saw blade grinding machine has the following characteristics:
1,It can precisely grind the saw blades to ensure that the size, Angle and other parameters of each saw are highly consistent, so as to ensure the accuracy of the saw blades in the sawing process, so that the cutting incision is smooth and the size is accurate. For example, when processing some wood and metal materials with high precision requirements, high-precision saw blade grinding machine can meet the processing needs.
The advanced saw blade grinding machine is also equipped with high-precision measuring devices and numerical control systems, which can monitor and adjust the grinding process in real time to further improve the grinding accuracy.
2,Can grind a variety of tooth types: can grind a variety of different types of teeth, such as left and right teeth, ladder teeth, triangular teeth, high and low teeth. This makes the saw blade grinding machine can be applied to different sawing materials and sawing requirements to meet the diversified needs of users.
Angle adjustable: The cutting Angle of the saw can be adjusted according to different sawing needs. For example, for materials with higher hardness, the cutting Angle of the sawtooth needs to be adjusted more sharply in order to better sawing; For softer materials, the cutting Angle can be adjusted appropriately to improve the sawing efficiency.
3,It is usually equipped with a simple and easy to understand operation interface and control system, and the operator can quickly get started with the operation only after simple training. Even beginners can master the operation of the saw blade grinding machine in a relatively short time.
Some saw blade grinding machines also have automatic functions, such as automatic feed, automatic adjustment of grinding parameters, etc., which further reduces the labor intensity of the operator and improves the work efficiency.
4,It can finish the grinding of the saw blade in a short time, which greatly improves the production efficiency. Especially for some large-scale saw blade processing enterprises, high-efficiency saw blade grinding machine can significantly improve production capacity and reduce production costs.
Part of the saw blade grinding machine adopts multi-station design, which can grind multiple saw blades at the same time, further improving the processing efficiency.
5,It can be used for grinding saw blades of different diameters and thicknesses. Whether it is a small saw blade or a large saw blade, it can be effectively grinding on the saw blade grinding machine.
For different materials of saw blades, such as high-speed steel blades, alloy blades, etc., saw blade grinding machine can be grinding processing, with strong versatility.
| Technical Parameters: |
| Processing saw blade diameter range: ¢100-800mm |
| Saw blade aperture: ¢10-220mm |
| Saw blade thickness (steel plate): 1-7mm |
| Pitch: 7-100mm |
| Tooth surface angle: 5 degrees ~ +30 degrees |
| Tip back angle: 6-45 degrees |
| Left and right inclination of the tooth: tooth top / tooth surface 45 degrees |
| Sharpening stroke range: up to 25mm (adjustable) teeth / minute |
| Sharpening speed: 0.5-6mm/s |
| Working speed: maximum 20 teeth / minute |
| Grinding wheel size (outer diameter x hole): (¢125mmx¢32mmX1mm) |
| Negative chamfer grinding: -27 degrees |
| Grinding head can rotate angle: 90 degrees and 180 degrees |
| Grinding wheel line speed: 26m / s |
| Coolant pump flow: 501/min |
| Cooling tank volume: 85L |
| Total power: 1.85 kW |
| Voltage: three-phase 380v |
| Mechanical weight: 710KG |
| Mechanical size (length X width X height): 1500X1300X1800mm |
| Technical features: |
| This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time. |
| 1. Preset many groups of tooth types and one-key multifunctional operation. |
| 2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged. |
