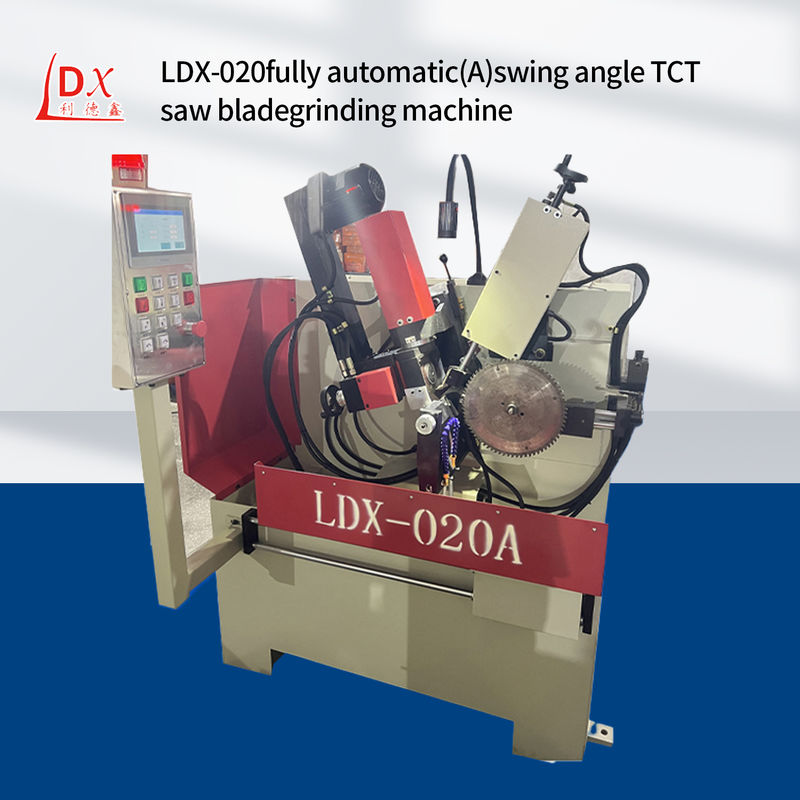

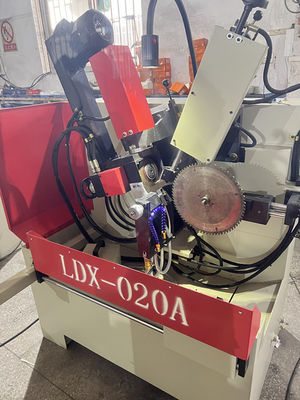

LDX-020A Automatic Woodworking Saw Blade Front And Rear Angle Grinder Factory Direct Sales
Product Details:
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | Lidexin |
| Certification: | CU,ISO |
| Model Number: | LDX-020A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Western Union |
| Packaging Details: | Mechanical dimensions (length x width x height): 1500X1100X1700mm |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs/mon |
|
Detail Information |
|||
| Total Power: | 1.85 KW | Mechanical Dimensions (length X Width X Height): | 1500X1100X1700mm |
|---|---|---|---|
| Saw Blade Thickness (steel Plate): | 1-12mm | Tooth Pitch: | 7-100mm |
| Tooth Surface Angle: | 5 Degrees To+20 Degrees | Saw Blade Aperture: | ￠ 10-220mm |
| Grinding Wheel Size (outer Diameter X Hole): | (￠ 125mm X ￠32mmX1mm) | ||
| Highlight: | LDX-020A Woodworking Saw Blade Grinder,Automatic Woodworking Saw Blade Grinder |
||
Product Description
LDX-020A Automatic woodworking saw blade front and rear Angle grinder factory direct sales
What do we need to pay attention to when grinding and reprocessing the band saw blade gear grinding machine?
1,When grinding again, the Original angle of the new state of the saw blade should be kept for grinding, otherwise it will cause loss due to poor grinding.
2,The coated teeth on the tool head are different from the usual circular saw blades, and the grinding method is different, please pay special attention to it.
3,After grinding, please confirm whether the tool head is still off, defective, unground, which will cause poor cutting or injury.
4,Saw blade reprocessing (reaming) is recommended not to exceed the original hole 20mm, otherwise it will cause detensioning and the cutting effect of the saw blade will be affected.
5,As we all know, high-speed processing technology is developing rapidly, and to promote this development trend is CNC grinding machine, how to make reasonable use of the performance of CNC machine tools (attributes: automatic machine tools) and maintain the accuracy of the machine tools (degree), it is crucial, below, let's talk about some details and common sense machine tools need to pay attention to in the power supply, I hope it was helpful.
| Technical parameter: |
| Processing saw blade diameter range: ￠100- ￠800mm |
| Saw blade aperture: ￠ 10-220mm |
| Saw blade thickness (steel plate): 1-12mm |
| Tooth pitch: 7-100mm |
| Tooth surface angle: 5 degrees to+20 degrees |
| Tooth top back angle: 1-20 degrees |
| Left and right inclination of teeth: tooth tip/tooth surface 20 degrees |
| Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute |
| Grinding speed: 0.5-6mm/s |
| Working speed: maximum 20 teeth/minute |
| Grinding wheel size (outer diameter x hole): (￠ 125mm x ￠ 32mmX1mm) |
| Negative chamfer grinding: -15 degrees |
| Grinding wheel linear speed: 26m/s |
| Flow rate of coolant water pump: 501/min |
| Volume of coolant cylinder: 85L |
| Total power: 1.85 kW |
| Voltage: three-phase 380v |
| Mechanical weight: 700KG |
| Mechanical dimensions (length x width x height): 1500X1100X1700mm |
| Technical features: |
| 1. This equipment can grind aluminum TCT cutting alloy saw blades and woodworking saw blades. It is easy to operate and can fully extend the service life of TCT saw blades. Each blade can be reused 15-30 times. This equipment has received praise from many buyers. |
